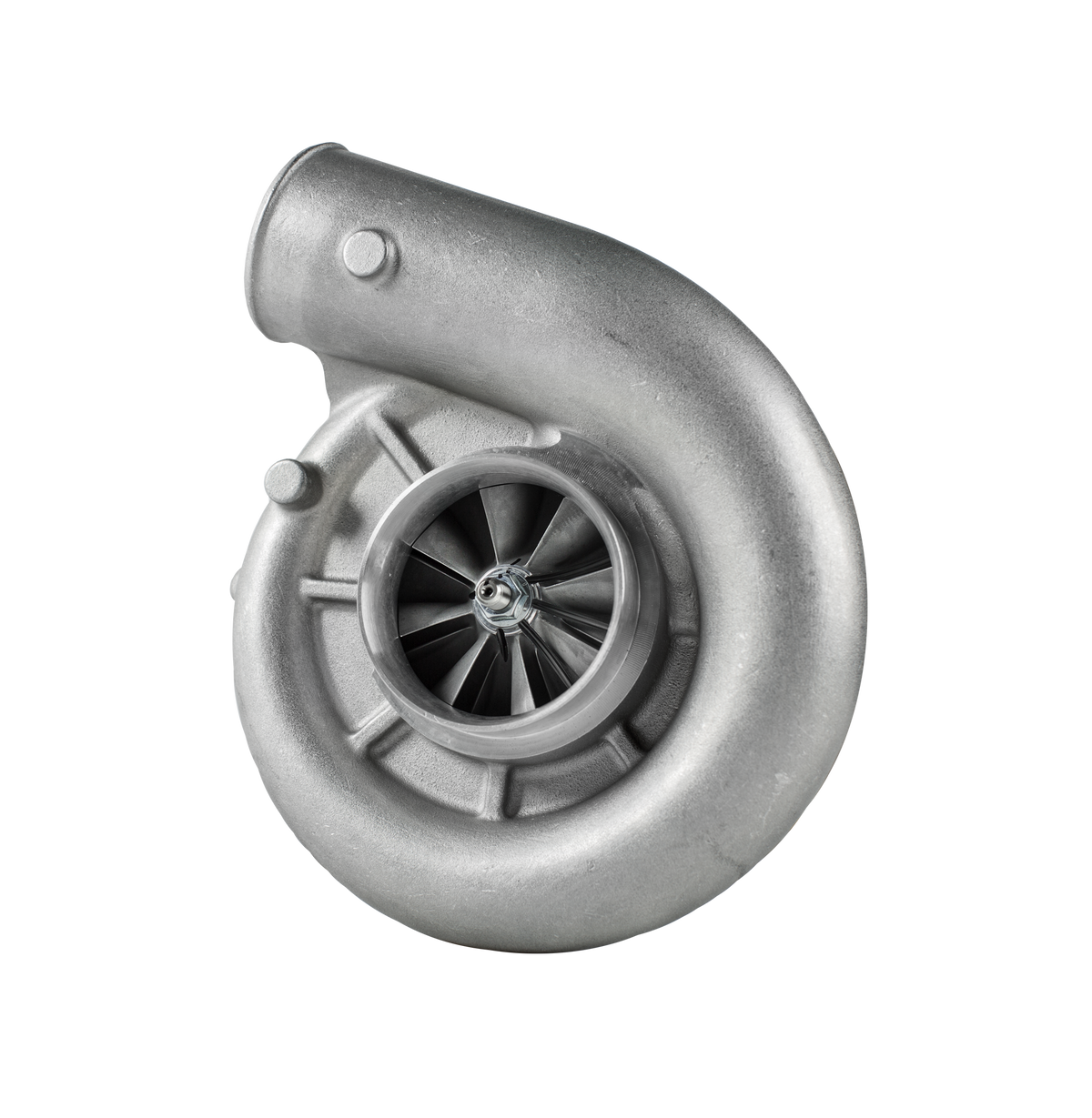

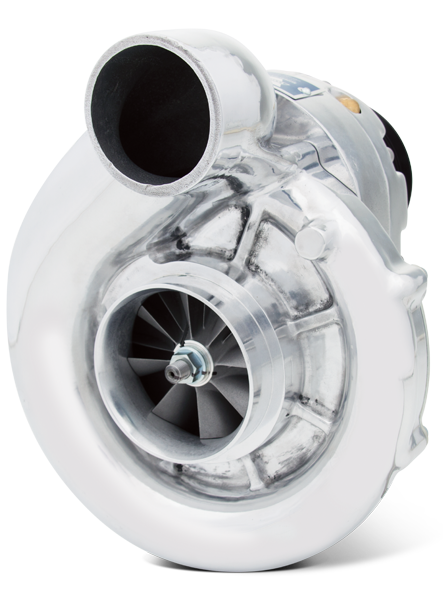

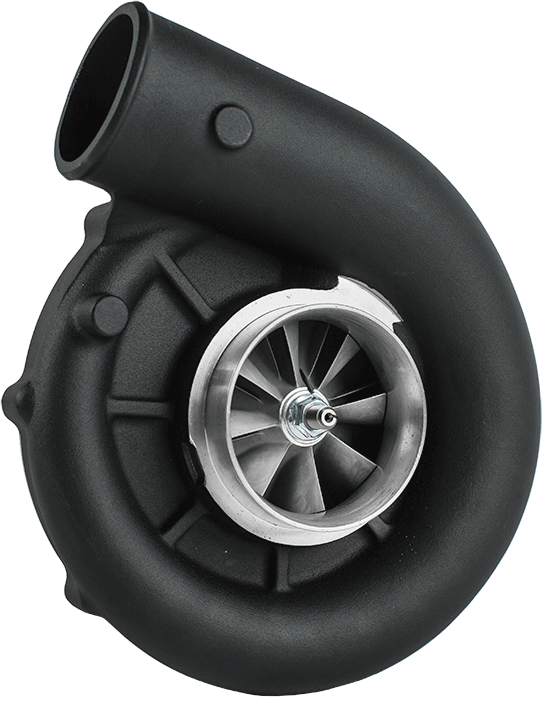

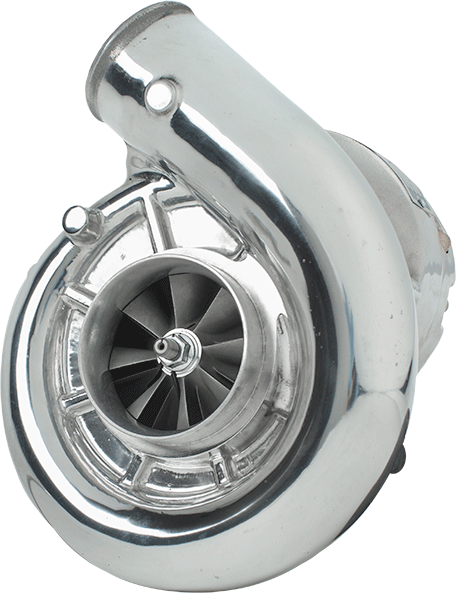

V-3 Si-Trim Heritage Series Supercharger Head Unit for up to 775 HP Applications

V-3 Si-Trim Heritage Series Supercharger Head Unit for up to 775 HP Applications

Vortech Superchargers

Regular price £3,744.99
Regular price Sale price £3,744.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:2F228-010H

ROTATION
DISCHARGE
FINISH
Quantity

The classic is new again. Back by popular demand, the original Vortech V-1 gearset from 1990 is now available with modern efficiency, in a self-lubricated transmission package. The Heritage Series units feature the same self-contained lubrication system as the normal V-3 units, and come with an attached oil drain extension so the unit does not have to be removed for servicing. The V-3 Heritage Series Si-Trim Supercharger is capable of up to 775HP on modified vehicles. Extraordinary 78% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Performance Specs

Internal Step-Up Ratio: 3.5:1
Max Speed: 52,000 RPM
Max Boost: 22 PSI
Max Flow: 1,150 CFM
Max Power: 775 HP
Peak Efficiency: 78%

Performance specs apply to units equipped with standard gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"
