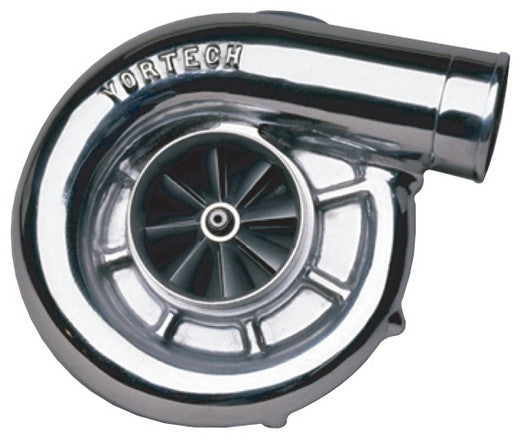

• V-1 H/D SCi-Trim Supercharger Head Unit for up to 725 HP Applications
1 1

V-1 H/D SCi-Trim Supercharger Head Unit for up to 725 HP Applications

V-1 H/D SCi-Trim Supercharger Head Unit for up to 725 HP Applications

Vortech Superchargers

£3,483.99
£3,483.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

2A128-300

Rotation
Discharge
Finish

Performance Specs

Internal Step-Up Ratio: 3.45:1
Max Speed: 55,000 RPM
Max Boost: 21 PSI
Max Flow: 1,050 CFM
Max Power: 725 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with heavy duty gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"
  • Straight cut spur gear
  • Available with straight or curved discharge
