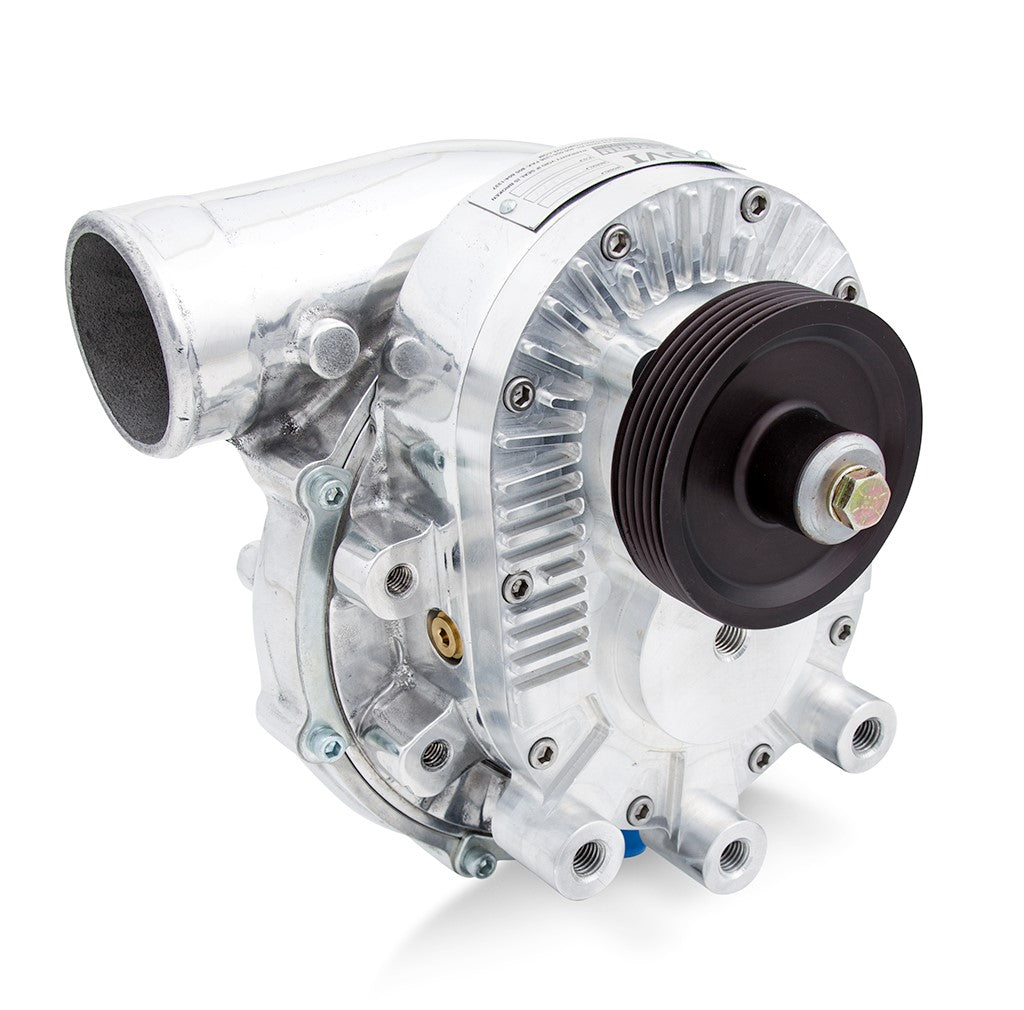

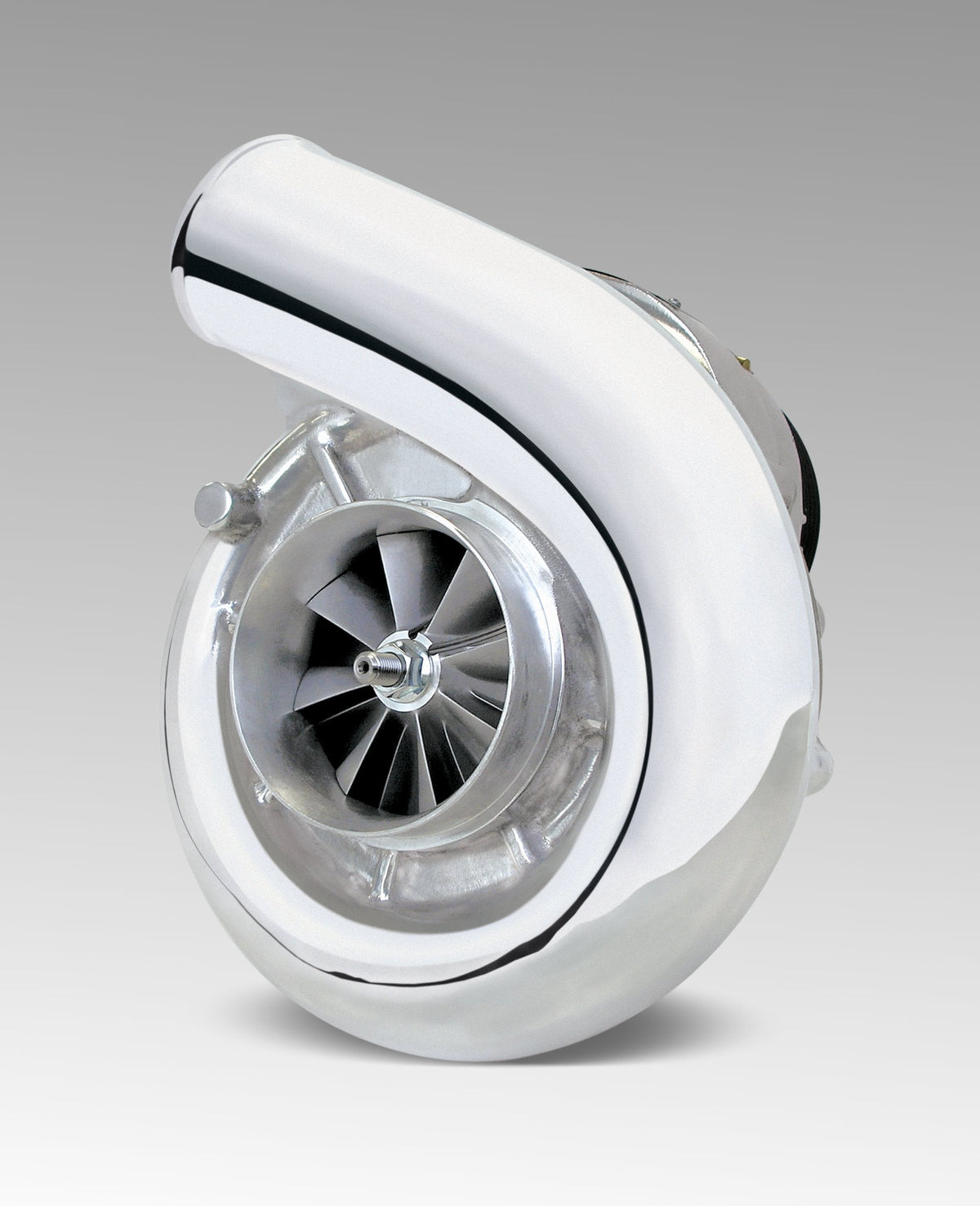

Paxton NOVI 1220 Supercharger Head Unit for up to 725 HP Applications

Paxton NOVI 1220 Supercharger Head Unit for up to 725 HP Applications

Paxton Automotive

Regular price £2,962.99
Regular price Sale price £2,962.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:1016121

Rotation
Discharge
Finish
Quantity

Equivalent to the Vortech V-2 SCi-Trim model, the NOVI 1220 with its highly advanced computer designed gears feature an optimized helical profile which allows for quieter operation while providing superior performance. All NOVI 1220 units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for Vortech V-1, V-2, or V-3 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1220 Supercharger is capable of up to 725HP on modified vehicles. Superior 75% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Performance Specs

Internal Step-Up Ratio: 3.61:1
Max Speed: 53,000 RPM
Max Boost: 17 PSI
Max Flow: 1,050 CFM
Max Power: 725 HP
Peak Efficiency: 75%

Performance specs apply to units equipped with standard gearcase.

Dimensions

Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"
  • Helical cut gear profile with SQ technology
  • Near silent operation
  • Available with straight or curved discharge

Part numbers below do not include drive pulley

8.75" Wide, 9.44" Tall, 5.52" Deep (not including input shaft)
