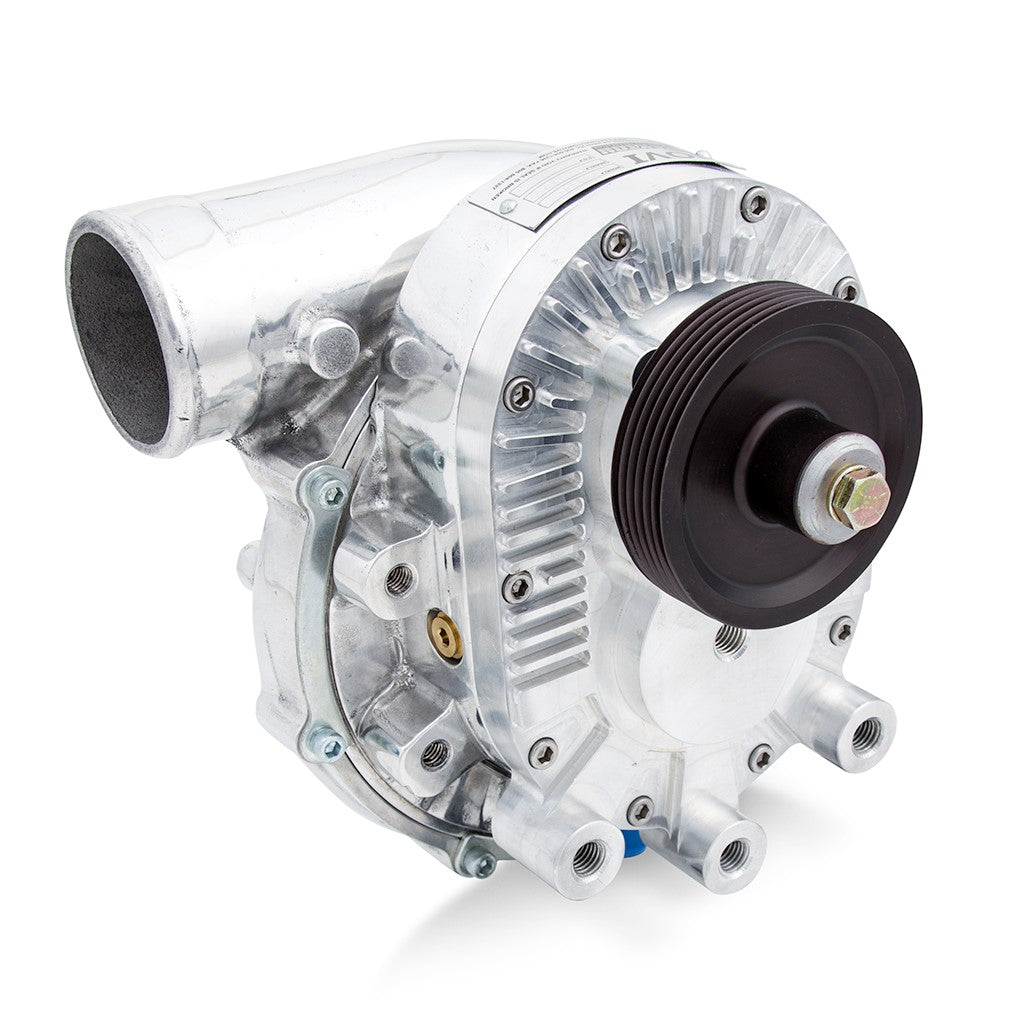

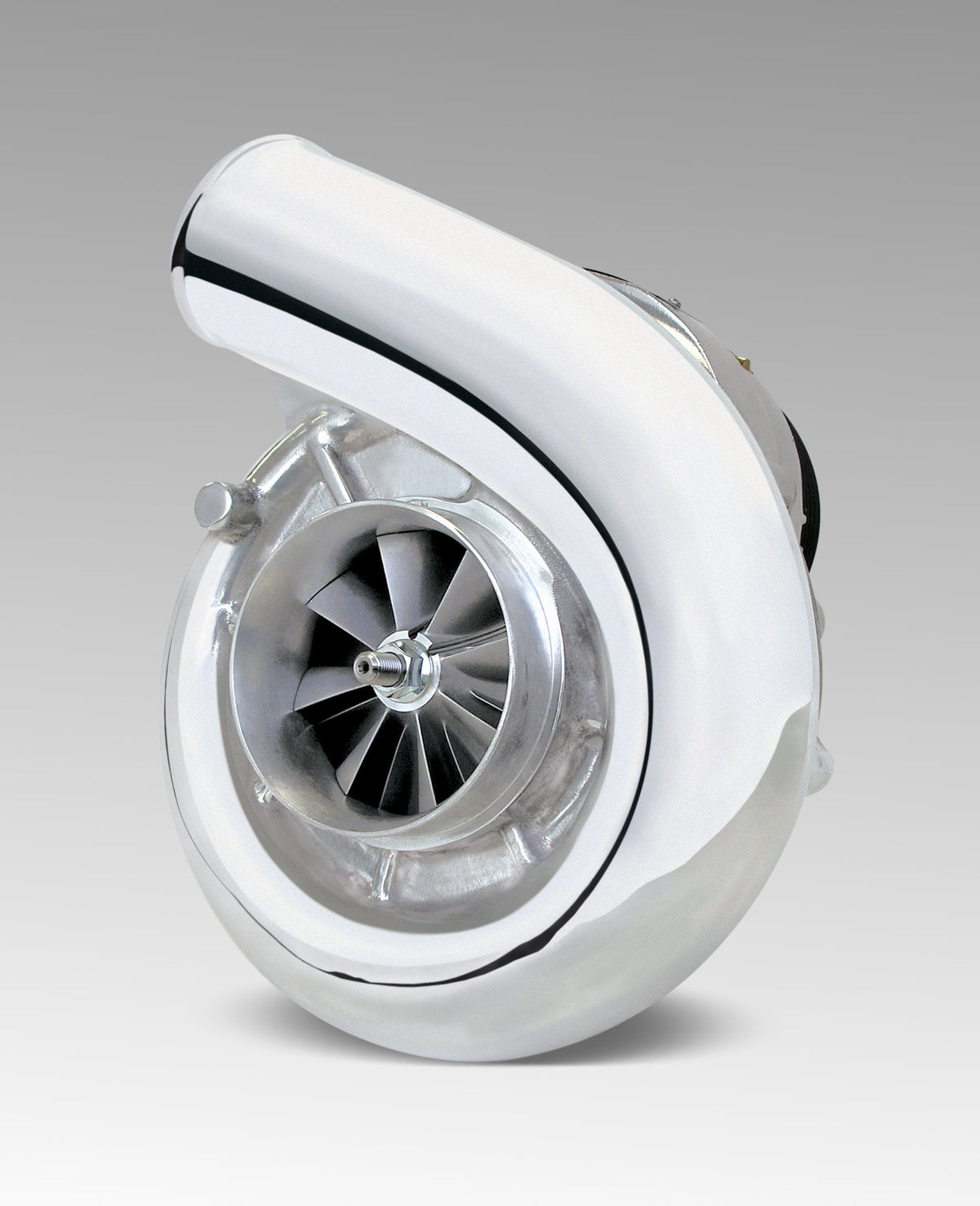

Paxton NOVI 1200 Supercharger Head Unit for up to 775 HP Applications

Equivalent to the Vortech V-2 Si model, the NOVI 1200 with its highly advanced computer designed gears features an optimized helical profile which allows for quieter operation while providing superior performance. All NOVI 1200 units feature a 3.6:1 internal step-up ratio and are direct bolt-on replacements for Vortech V-1, V-2, or V-3 units. The supercharger uses the quieter helical cut gears (3.61:1 ratio). The NOVI 1200 Supercharger is capable of up to 775HP on modified vehicles. Extraordinary 78% peak efficiency. Ideal for latest generation of improved breathing, high-power street and strip engines.

Performance Specs

Internal Step-Up Ratio: 3.61:1

Max Speed: 52,000 RPM

Max Boost: 22 PSI

Max Flow: 1,150 CFM

Max Power: 775 HP

Peak Efficiency: 78%

Performance specs apply to units equipped with standard gearcase.

Dimensions

Discharge OD: 2.75"

Inlet OD: 3.5"

Discharge ID: 2.38"

Inducer Diameter: 3.1"

Ideal for latest generation of improved breathing, high-power street and strip engines. Vastly improved flow and efficiency at high boost levels, providing completely new levels of power gain.
